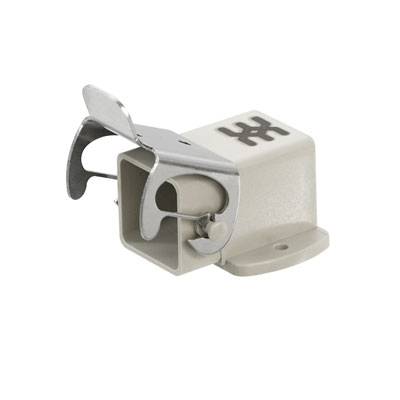

Weidmüller HDC 07A SLU 1M20G 1788530000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M20
Case material
Plastic
Type
HDC 07A SLU 1M20G
Series
RockStar® HDC 07A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC07A SLU 1M 20 G
Technical specifications
- Width of housing C: 24.2 mm
- Height of housing B: 41.5 mm
- Length of housing: 26.8 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Material of locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input lateral: 1
- Design: Standard
- size: 1
- Bracket design: Transverse bracket
- suitable for ModulPlug®: No
- Size of cable inputs: M 20
- Upper part/cover: Lower section
- Mounting dimensions Width: 30 mm
- hole spacing Length A2: 30 mm
- Width Socket C1: 42 mm
- Height Socket B1: 3 mm
- flammability class according to UL 94: V-0
- Type
HDC 07A SLU 1M20G
- Product type
Socket enclosure
- Series
RockStar® HDC 07A
- Manufacturer part #
1788530000
- Features
+ transverse brace on the bottom part
Cable input (lateral)
+ thread
- Thread size
M20
- Case material
Plastic
- Factory colour
Grey
- Weight
22 g
- Content
1 pc(s)
- Width
36.5 mm
- Height
52.8 mm
- Length
25.8 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
37
TRUE
53 mm
26 mm
Beige
Double locking levers
1
FALSE
TRUE
Plastic
-40-125 °C
V0
Socket case
IP65
Plastic
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203719 Weidmüller HDC 07A SLU 1M20G 1788530000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203719 Weidmüller HDC 07A SLU 1M20G 1788530000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 1, protection class IP 65, socket housing, cross brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
