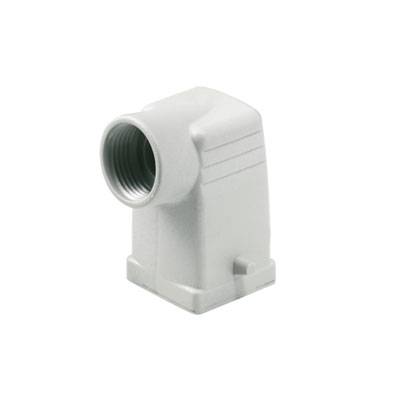

Weidmüller HDC 07A TWLU 1M20G 1788510000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M20
Case material
Plastic
Type
HDC 07A TWLU 1M20G
Series
RockStar® HDC 07A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC07A TWLU 1M 20 G
Technical specifications
- Wide housing C: 26.8 mm
- Height Housing B: 49.2 mm
- Length Housing: 37.3 mm
- Torque: 0.5 Nm
- EMC Housing: No
- Number of cable input top: 0
- Number of cable input side: 1
- Type of construction: Standard
- size: 1
- Bracket design: Cross bracket
- suitable for ModulPlug®: No
- Size of cable inputs: M 20
- Top/bottom part/cover: Top section
- flammability class according to UL 94: V-0
- Type
HDC 07A TWLU 1M20G
- Product type
Plug enclosure
- Series
RockStar® HDC 07A
- Manufacturer part #
1788510000
- Features
+ transverse brace on the bottom part
Cable input (lateral)
+ thread
- Thread size
M20
- Case material
Plastic
- Factory colour
Grey
- Weight
14 g
- Content
1 pc(s)
- Width
36.5 mm
- Height
49.2 mm
- Length
37.3 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203717 Weidmüller HDC 07A TWLU 1M20G 1788510000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203717 Weidmüller HDC 07A TWLU 1M20G 1788510000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 1, protection class IP65, side cable entry, plug casing, cross brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
