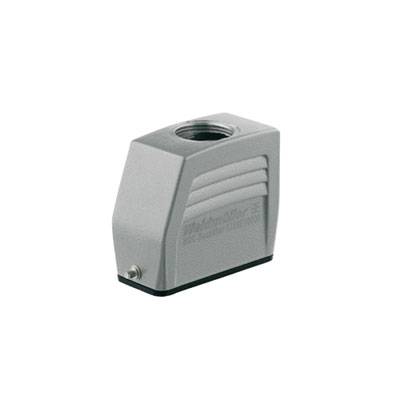

Weidmüller HDC 10A TOLU 2PG11G 1746170000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
PG11
Case material
Aluminium, die cast
Type
HDC 10A TOLU 2PG11G
Series
RockStar® HDC 10A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC10A Ulu Ko * 2 PG 11 G
Technical specifications
- Wide housing C: 29.5 mm
- Height Housing B: 54 mm
- Length Housing: 63 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 2
- Number of cable input side: 0
- Design type: Standard
- size: 2
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: PG 11
- Top/bottom part/cover: Top
- seal: NBR
- Type
HDC 10A TOLU 2PG11G
- Product type
Plug enclosure
- Series
RockStar® HDC 10A
- Manufacturer part #
1746170000
- Features
+ longitudinal brace on the bottom part
2x cable entry (straight)
+ thread
- Thread size
PG11
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
98 g
- Content
1 pc(s)
- Width
32.5 mm
- Height
54 mm
- Length
72.5 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203359 Weidmüller HDC 10A TOLU 2PG11G 1746170000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203359 Weidmüller HDC 10A TOLU 2PG11G 1746170000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 2, protection class IP 65, top, connector housing, longitudinal brace on the bottom part, Standard, large cable inputs: PG 11. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
