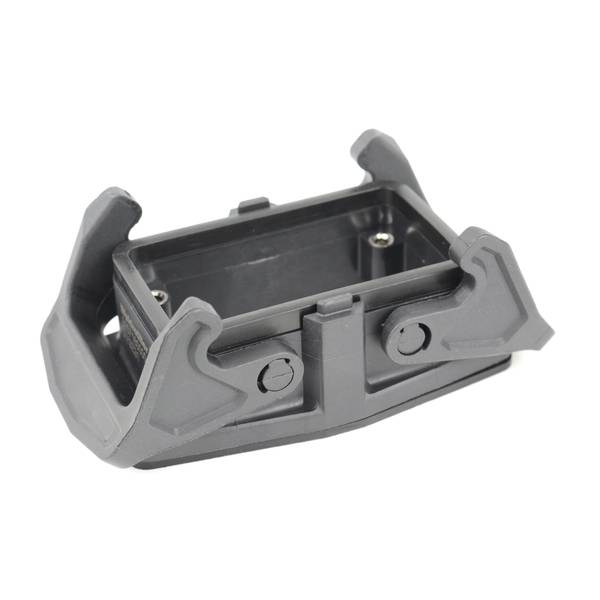

Weidmüller HDC 10B ABU BP 3107160000 Enclosure extension 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Case material
Plastic
Type
HDC 10B ABU BP
Series
RockStar® HDC 10B
Manufacturer part #
3107160000
Datasheet (PDF)
Technical specifications
- Type
HDC 10B ABU BP
- Product type
Enclosure extension
- Series
RockStar® HDC 10B
- Manufacturer part #
3107160000
- Features
+ transverse brace on the bottom part
+ seal
- Case material
Plastic
- Factory colour
Black
- Connection
below
- Content
1 pc(s)
- Width
93 mm
- Length
43 mm
IP65 (when installed)
- Max. temperature
125 °C
- Min. temperature
-40 °C
93 mm
30.6 mm
43 mm
FALSE
Black
Double locking levers
FALSE
FALSE
Plastic
-40-125 °C
FALSE
TRUE
Housing extension
IP65
Plastic
Bottom
Base unit
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3748325 Weidmüller HDC 10B ABU BP 3107160000 Enclosure extension 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3748325 Weidmüller HDC 10B ABU BP 3107160000 Enclosure extension 1 pc(s)
Description
The housing is perfectly protected thanks to a special die-cast alloy and a multi-stage sealing of the surface.
