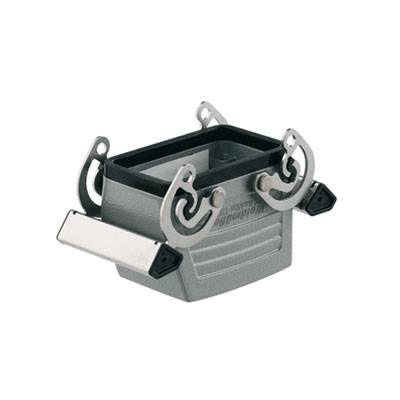

Weidmüller HDC 10B KBU 1M20G 1787720000 Connector enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Thread size
M20
Case material
Aluminium, die cast
Type
HDC 10B KBU 1M20G
Series
RockStar® HDC 10B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC10B KBU 1M 20 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 54.65 mm
- Length Housing: 73 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: Standard
- size: 4
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: M 20
- Top/bottom part/cover: Lower part
- of seal: NBR
- Type
HDC 10B KBU 1M20G
- Product type
Connector enclosure
- Series
RockStar® HDC 10B
- Manufacturer part #
1787720000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
M20
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
211 g
- Content
1 pc(s)
- Width
55 mm
- Height
55 mm
- Length
115.7 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
55
TRUE
55 mm
115.7 mm
Grey
Double locking levers
0
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Coupling housing
IP65
Aluminium
Two-sided
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203649 Weidmüller HDC 10B KBU 1M20G 1787720000 Connector enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203649 Weidmüller HDC 10B KBU 1M20G 1787720000 Connector enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 4, protection class IP65, clutch housing, cross brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
