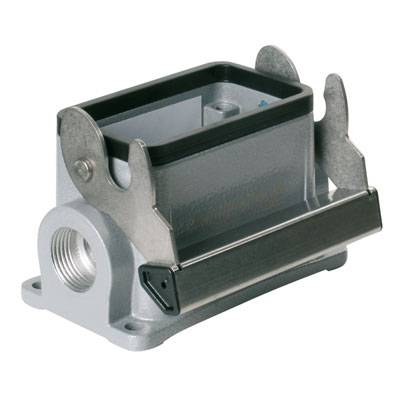

Weidmüller HDC 10B SLU 2M20G 1787660000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M20
Case material
Aluminium, die cast
Type
HDC 10B SLU 2M20G
Series
RockStar® HDC 10B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC10B SLU 2M 20G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 57 mm
- Length Housing: 73 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input top: 0
- Number of cable input side: 2
- Design: Standard
- size: 4
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: M 20
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 82 mm
- Mounting dimensions Height: 40 mm
- Hole spacing Length A2: 82 mm
- Seal: NBR
- Width Socket C1: 53.5 mm
- Height Socket B1: 5 mm
- Type
HDC 10B SLU 2M20G
- Product type
Socket enclosure
- Series
RockStar® HDC 10B
- Manufacturer part #
1787660000
- Features
+ longitudinal brace on the bottom part
2x cable entry (lateral)
+ thread
- Thread size
M20
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
270 g
- Content
1 pc(s)
- Width
77.7 mm
- Height
57 mm
- Length
92.5 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203644 Weidmüller HDC 10B SLU 2M20G 1787660000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203644 Weidmüller HDC 10B SLU 2M20G 1787660000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 4, protection class IP 65, socket housing, longitudinal brace on the bottom part, Standard, large cable inputs: M20. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
