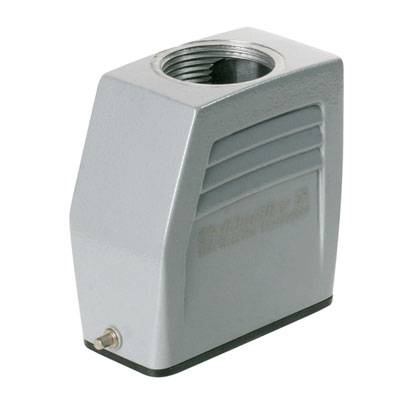

Weidmüller HDC 15A TOLU 1PG21G 1663990000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
PG21
Case material
Aluminium, die cast
Type
HDC 15A TOLU 1PG21G
Series
RockStar® HDC 15A
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC15A Ulu Ko * 1 PG 21 G
Technical specifications
- Wide housing C: 29.5 mm
- Height Housing B: 68 mm
- Length Housing: 63 mm
- Tightening torque: 0.5 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: High
- Size: 2
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: PG 21
- Top/bottom part/cover: Top
- seal: NBR
- Type
HDC 15A TOLU 1PG21G
- Product type
Plug enclosure
- Series
RockStar® HDC 15A
- Manufacturer part #
1663990000
- Features
+ longitudinal brace on the bottom part
Cable input (straight)
high type
+ thread
- Thread size
PG21
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
129 g
- Content
1 pc(s)
- Width
32.5 mm
- Height
68 mm
- Length
72.5 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203013 Weidmüller HDC 15A TOLU 1PG21G 1663990000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203013 Weidmüller HDC 15A TOLU 1PG21G 1663990000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 2, protection class IP 65, top, connector housing, longitudinal brace on the bottom part, high, large cable inputs: PG 21. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
