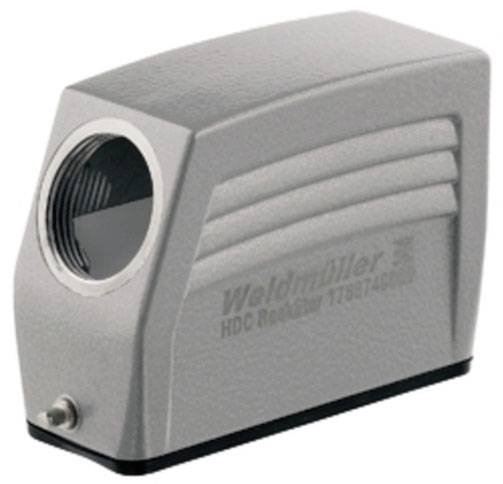

Image similar

Image similar

Product type

Plug enclosure

Thread size

M20

Case material

Aluminium, die cast

Type

HDC 16A TSLU 1M20G

Manufacturer part #

1041760000

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

EMC housing: No
Number of cable input top: 0
Number of cable input side: 1
Type: Standard
size: 5
Handle design: Longitudinal clamp
Seal: NBR
suitable for ModulPlug®: No
Upper part/lower part/cover: Upper part
Width housing C: 29.5 mm
Height housing B: 58 mm
Length housing: 79 mm
Torque: 0.5 Nm
Material locking element: Stainless steel, stainless steel

Type: HDC 16A TSLU 1M20G

Product type: Plug enclosure

Manufacturer part #: 1041760000

Features: + thread
+ longitudinal brace on the bottom part
powder-painted
Cable input (lateral)

Thread size: M20

Case material: Aluminium, die cast

Factory colour: Grey

Weight: 133 g

Content: 1 pc(s)

Width: 32.5 mm

Height: 58 mm

Length: 89 mm

: IP65

Max. temperature: +125 °C

Min. temperature: -40 °C

: 32.5

: FALSE

: 58 mm

: 89 mm

: Grey

: Single locking lever

: 1

: FALSE

: TRUE

: Aluminium

: Powder coating

: -40-125 °C

: Other

: TRUE

: Plug case

: IP65

: Aluminium

: Sideways

: Base unit

UKCA: yes
