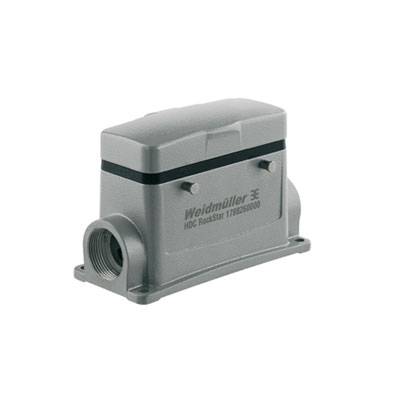

Weidmüller HDC 16B SDBO 1M25G 1900080000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 16B SDBO 1M25G
Series
RockStar® HDC 16B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC16B SDBO 1M 25G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 64 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 6
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: M 25
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 105 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 105 mm
- Seal: NBR
- Width Socket C1: 56.5 mm
- Height Socket B1: 5 mm
- Type
HDC 16B SDBO 1M25G
- Product type
Socket enclosure
- Series
RockStar® HDC 16B
- Manufacturer part #
1900080000
- Features
+ transverse brace on the top part
Cable input (lateral)
+ lid
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
390 g
- Content
1 pc(s)
- Width
77.5 mm
- Height
82 mm
- Length
117 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
77.5
TRUE
82 mm
TRUE
Grey
Double locking levers
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Cover
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204637 Weidmüller HDC 16B SDBO 1M25G 1900080000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204637 Weidmüller HDC 16B SDBO 1M25G 1900080000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 6, protection class IP 65, socket housing, cross brace on the top part, standard, with cover, large cable inputs: M25. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
