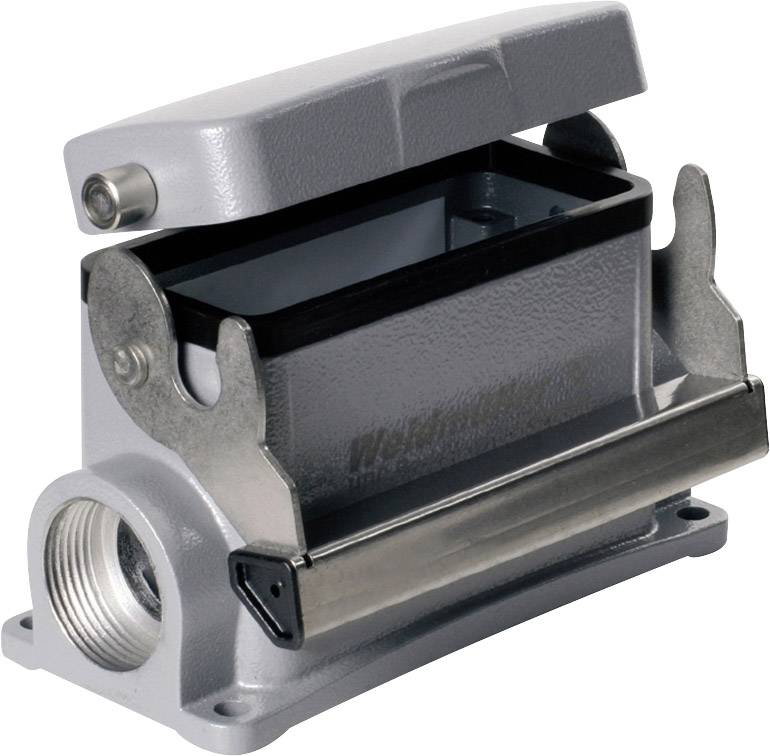

Weidmüller HDC 16B SDLU 1M25G 1415810000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 16B SDLU 1M25G
Manufacturer part #
1415810000
Technical specifications
- EMC housing: No
- Number of cable input side: 1
- Design: Standard
- Size: 6
- Bracket design: Longitudinal clamp
- Seal: NBR
- suitable for ModulPlug®: No
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 105 mm
- Mounting dimensions Height: 45 mm
- Width Housing C: 43 mm
- Width Socket C1: 56.5 mm
- Height Housing B: 82 mm
- Height Socket B1: 5 mm
- hole spacing Length A2: 105 mm
- Length of housing: 93.3 mm
- Torque: 1.2 Nm
- Material of locking element: Stainless steel, stainless steel
- Type
HDC 16B SDLU 1M25G
- Product type
Socket enclosure
- Manufacturer part #
1415810000
- Features
+ thread
+ longitudinal brace on the bottom part
powder-painted
+ lid
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
445 g
- Content
1 pc(s)
- Width
99.5 mm
- Height
82 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
99.5
FALSE
82 mm
TRUE
Grey
Single locking lever
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Base unit
- UKCA
yes
