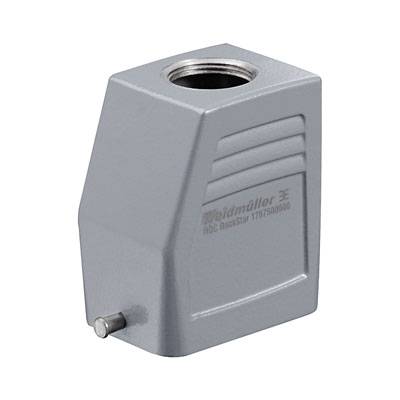

Weidmüller HDC 16D TOLU 1M25G 1787500000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 16D TOLU 1M25G
Series
RockStar® HDC 16D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC16D Ulu Ko * 1M 25G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 72 mm
- Length Housing: 60 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: High
- Size: 3
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 25
- Upper part/Cover: Upper part
- Type
HDC 16D TOLU 1M25G
- Product type
Plug enclosure
- Series
RockStar® HDC 16D
- Manufacturer part #
1787500000
- Features
+ longitudinal brace on the bottom part
Cable input (straight)
high type
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
167 g
- Content
1 pc(s)
- Width
43 mm
- Height
72 mm
- Length
75 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
43
FALSE
72 mm
Grey
Single locking lever
0
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Plug case
IP65
Aluminium
Above
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203629 Weidmüller HDC 16D TOLU 1M25G 1787500000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203629 Weidmüller HDC 16D TOLU 1M25G 1787500000 Plug enclosure 1 pc(s)
