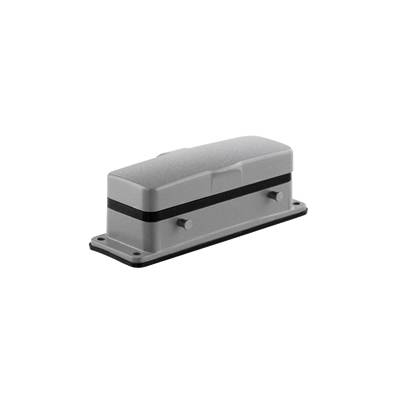

Weidmüller HDC 24B ABO 1967910000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC 24B ABO
Series
RockStar® HDC 24B
Datasheet (PDF)
Technical specifications
- Width of housing C: 43 mm
- Height of housing B: 29 mm
- Length of housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 8
- Bracket design: Transverse bracket
- suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimension Width: 130 mm
- Mounting dimension Height: 32 mm
- Hole distance Length A2: 130 mm
- Seal: NBR
- Width Socket C1: 47 mm
- Height Socket B1: 5.3 mm
- Packaging type
Piece
- Type
HDC 24B ABO
- Product type
Enclosure extension
- Series
RockStar® HDC 24B
- Manufacturer part #
1967910000
- Features
+ transverse brace on the top part
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
109 g
- Content
1 pc(s)
- Width
47 mm
- Height
28.8 mm
- Length
143 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 389545 Weidmüller HDC 24B ABO 1967910000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 389545 Weidmüller HDC 24B ABO 1967910000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 8, protection class IP65, extension casing, cross brace on the top part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
