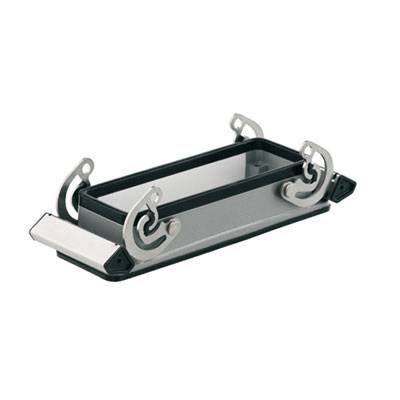

Weidmüller HDC 24B ABU 1212400000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC 24B ABU
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC24B ABU
Technical specifications
- Width of housing C: 43 mm
- Height of housing B: 29.5 mm
- Length of housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 8
- Bracket design: Transverse bow
- suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 130 mm
- Mounting dimensions Height: 32 mm
- Hole spacing Length A2: 130 mm
- Seal: NBR
- Width Socket C1: 47 mm
- Height Socket B1: 5.3 mm
- Packaging type
Piece
- Type
HDC 24B ABU
- Product type
Enclosure extension
- Series
RockStar® HDC 24B
- Manufacturer part #
1212400000
- Features
+ transverse brace on the bottom part
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
175 g
- Content
1 pc(s)
- Width
55 mm
- Height
29.3 mm
- Length
163 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
55
FALSE
29.3 mm
Grey
Double locking levers
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Housing extension
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201643 Weidmüller HDC 24B ABU 1212400000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 201643 Weidmüller HDC 24B ABU 1212400000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 8, protection class IP65, extension casing, cross brace on the bottom part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
This text is machine translated.
