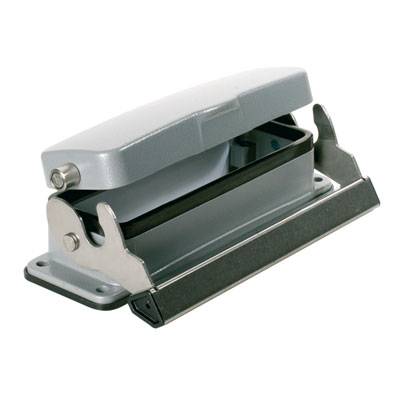

Weidmüller HDC 24B ADLU 1214300000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC 24B ADLU
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- ADLU HDC24B
Technical specifications
- Width of housing C: 43 mm
- Height of housing B: 29.3 mm
- Length of housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 8
- Bracket design: Longitudinal bracket
- suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 130 mm
- Mounting dimensions Height: 32 mm
- Hole spacing Length A2: 130 mm
- Seal: NBR
- Width Socket C1: 47 mm
- Height Socket B1: 5.3 mm
- Packaging type
Piece
- Type
HDC 24B ADLU
- Product type
Enclosure extension
- Series
RockStar® HDC 24B
- Manufacturer part #
1214300000
- Features
+ longitudinal brace on the bottom part
+ lid
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
286 g
- Content
1 pc(s)
- Width
99 mm
- Height
47 mm
- Length
143 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
99
TRUE
47 mm
TRUE
Grey
Single locking lever
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Housing extension
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201653 Weidmüller HDC 24B ADLU 1214300000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 201653 Weidmüller HDC 24B ADLU 1214300000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 8, protection class IP65, mounting housing, longitudinal brace on the bottom part, standard, with lid. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
