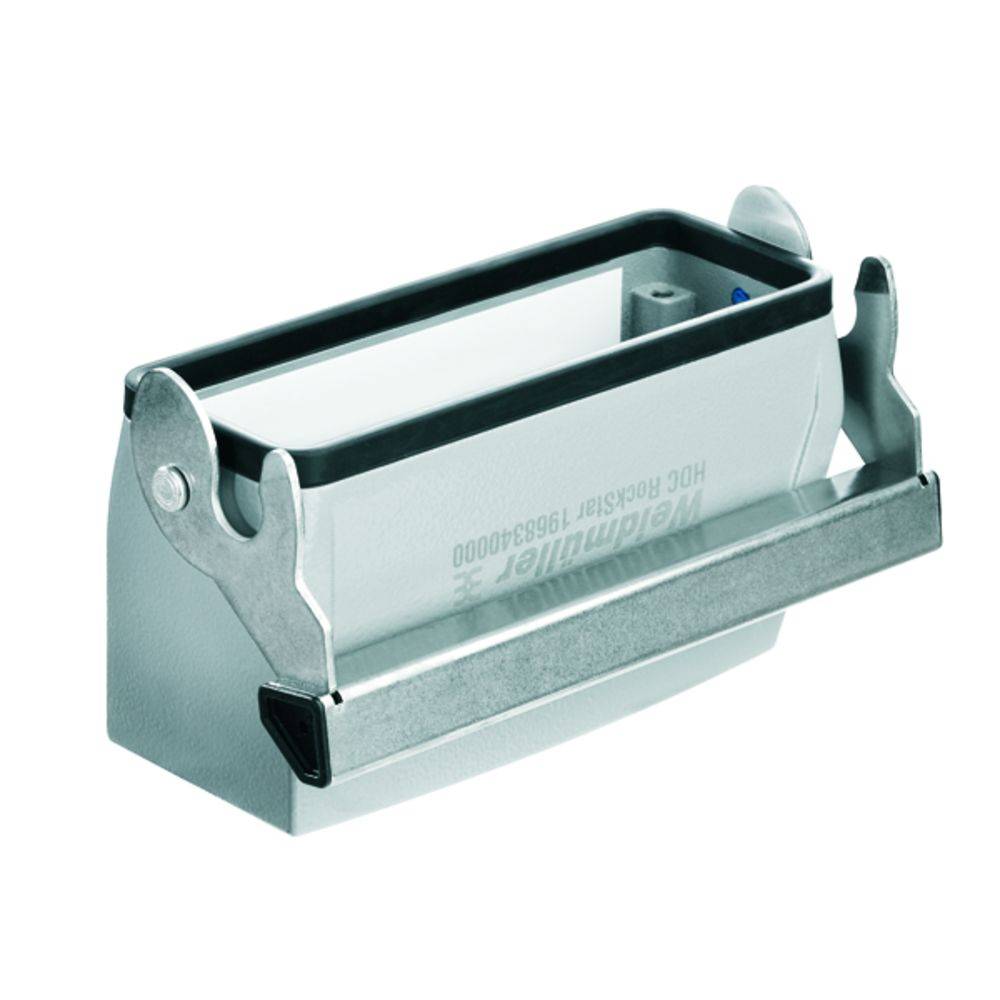

Weidmüller HDC 24B KLU 1M25G 1968340000 Connector enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 24B KLU 1M25G
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC24B KLU 1M 25G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 66 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: Standard
- size: 8
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: M 25
- Top/bottom part/cover: Lower part
- of seal: NBR
- Type
HDC 24B KLU 1M25G
- Product type
Connector enclosure
- Series
RockStar® HDC 24B
- Manufacturer part #
1968340000
- Features
+ longitudinal brace on the bottom part
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
342 g
- Content
1 pc(s)
- Width
73.8 mm
- Height
63.8 mm
- Length
134 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256193 Weidmüller HDC 24B KLU 1M25G 1968340000 Connector enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 256193 Weidmüller HDC 24B KLU 1M25G 1968340000 Connector enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP65, clutch housing, longitudinal brace on the bottom part, Standard, large cable inputs: M25. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
