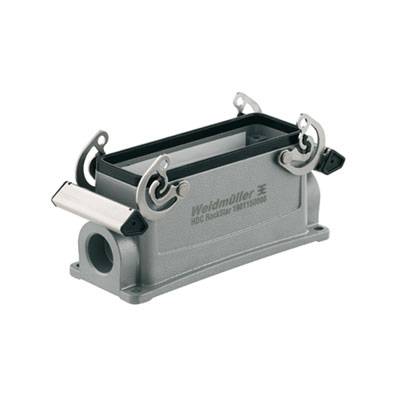

Weidmüller HDC 24B SBU 1PG21G 1661510000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG21
Case material
Aluminium, die cast
Type
HDC 24B SBU 1PG21G
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC24B SBU 1 PG 21 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 64 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input top: 0
- Number of cable input side: 1
- Design type: Standard
- size: 8
- Bracket design: Cross bracket
- suitable for ModulPlug®: No
- Size Cable inputs: PG 21
- Upper part/lower part/cover: Lower section
- Mounting dimensions Width: 132 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 132 mm
- Seal: NBR
- Width Socket C1: 57.5 mm
- Height Socket B1: 5 mm
- Type
HDC 24B SBU 1PG21G
- Product type
Socket enclosure
- Series
RockStar® HDC 24B
- Manufacturer part #
1661510000
- Features
+ transverse brace on the bottom part
- Thread size
PG21
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
421 g
- Content
1 pc(s)
- Width
57.5 mm
- Height
64 mm
- Length
163 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
57.5
TRUE
64 mm
Grey
Double locking levers
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202970 Weidmüller HDC 24B SBU 1PG21G 1661510000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202970 Weidmüller HDC 24B SBU 1PG21G 1661510000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, socket housing, cross brace on the bottom part, Standard, large cable inputs: PG 21. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
