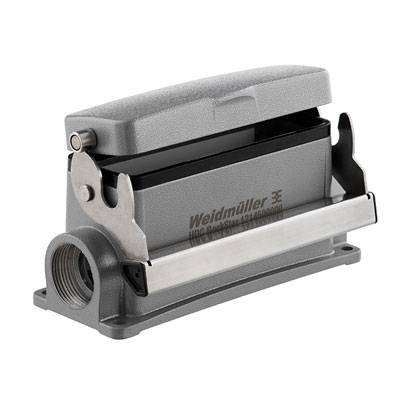

Weidmüller HDC 24B SDLU 2PG21G 1214500000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG21
Case material
Aluminium, die cast
Type
HDC 24B SDLU 2PG21G
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC24B SDLU 2PG 21 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 64 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 2
- Design type: Standard
- size: 8
- Bracket design: Suitable for
- ModulPlug®: No
- Size of cable inputs: PG 21
- Upper part/lower part/cover: Lower section
- Mounting dimensions Width: 132 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 132 mm
- Seal: NBR
- Width Socket C1: 57.5 mm
- Height Socket B1: 5 mm
- Type
HDC 24B SDLU 2PG21G
- Product type
Socket enclosure
- Series
RockStar® HDC 24B
- Manufacturer part #
1214500000
- Features
+ longitudinal brace on the bottom part
+ lid
2x cable entry (lateral)
+ thread
- Thread size
PG21
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
513 g
- Content
1 pc(s)
- Width
98.8 mm
- Height
86 mm
- Length
144 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201654 Weidmüller HDC 24B SDLU 2PG21G 1214500000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 201654 Weidmüller HDC 24B SDLU 2PG21G 1214500000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, socket housing, longitudinal brace on the bottom part, standard, with cover, large cable inputs: PG 21. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
