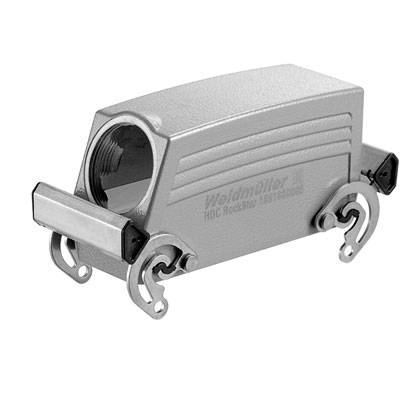

Weidmüller HDC 24B TSBO 1PG29G 1661880000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
PG29
Case material
Aluminium, die cast
Type
HDC 24B TSBO 1PG29G
Series
RockStar® HDC 24B
Datasheet (PDF)
Highlights & Details
Connector housing
- TSBO HDC24B 1 PG 29 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 62.58 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 8
- Bracket design: Suitable for
- ModulPlug®: No
- Size Cable inputs: PG 29
- Upper part/Lower part/cover: Upper part
- Type
HDC 24B TSBO 1PG29G
- Product type
Plug enclosure
- Series
RockStar® HDC 24B
- Manufacturer part #
1661880000
- Features
+ transverse brace on the top part
Cable input (lateral)
+ thread
- Thread size
PG29
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
326 g
- Content
1 pc(s)
- Width
55 mm
- Height
61 mm
- Length
163 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202979 Weidmüller HDC 24B TSBO 1PG29G 1661880000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202979 Weidmüller HDC 24B TSBO 1PG29G 1661880000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP65, side cable entry, plug casing, cross brace on the top part, Standard, large cable inputs: PG 29. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
