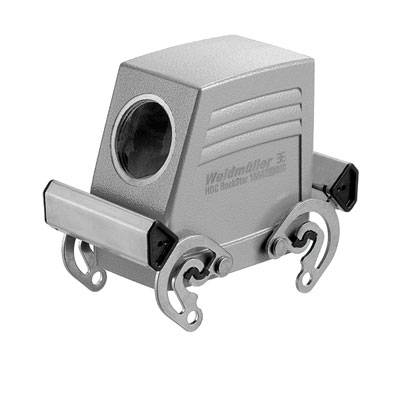

Weidmüller HDC 24D TSBO 1M25G 1787260000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 24D TSBO 1M25G
Series
RockStar® HDC 24D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC24D TSBO 1M 25G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 72 mm
- Length Housing: 73 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design: High
- Size: 4
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 25
- Upper part/Cover: Upper part
- Type
HDC 24D TSBO 1M25G
- Product type
Plug enclosure
- Series
RockStar® HDC 24D
- Manufacturer part #
1787260000
- Features
+ transverse brace on the top part
Cable input (lateral)
high type
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
250 g
- Content
1 pc(s)
- Width
55 mm
- Height
72 mm
- Length
110.5 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203611 Weidmüller HDC 24D TSBO 1M25G 1787260000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203611 Weidmüller HDC 24D TSBO 1M25G 1787260000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 4, protection class IP65, side cable entry, plug casing, cross brace on the top part, high, large cable inputs: M25. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
