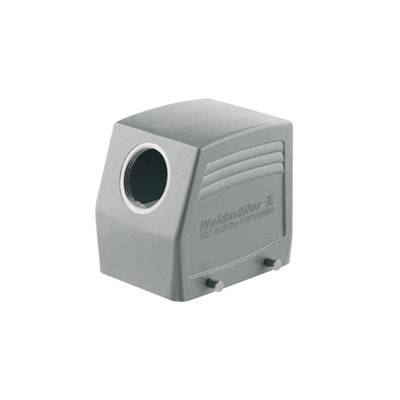

Weidmüller HDC 32A TSBU 1M25G 1787960000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 32A TSBU 1M25G
Series
RockStar® HDC 32A
Datasheet (PDF)
Highlights & Details
Connector housing
- TSBU 1M 25G HDC 32 A
Technical specifications
- Wide housing C: 56 mm
- Height Housing B: 77 mm
- Length Housing: 82 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 7
- Bracket design: Suitable for
- ModulPlug®: No
- Size Cable inputs: M 25
- Upper part/Cover: Upper part
- Type
HDC 32A TSBU 1M25G
- Product type
Plug enclosure
- Series
RockStar® HDC 32A
- Manufacturer part #
1787960000
- Features
+ transverse brace on the bottom part
Cable input (lateral)
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
265 g
- Content
1 pc(s)
- Width
71.5 mm
- Height
75 mm
- Length
82 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
71.5
FALSE
75 mm
82 mm
Grey
Double locking levers
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Plug case
IP65
Aluminium
Sideways
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203668 Weidmüller HDC 32A TSBU 1M25G 1787960000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203668 Weidmüller HDC 32A TSBU 1M25G 1787960000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 7, protection class IP65, side cable entry, plug casing, cross brace on the bottom part, Standard, large cable inputs: M25. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
