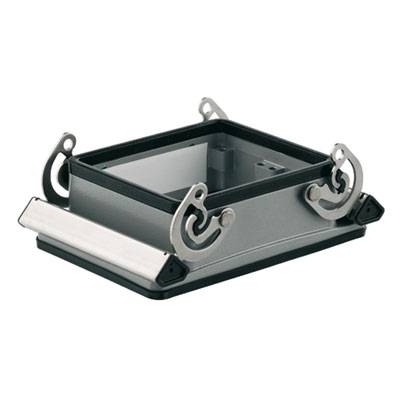

Weidmüller HDC 32B ABU 1217800000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC 32B ABU
Series
RockStar® HDC 32B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC32B ABU
Technical specifications
- Width of housing C: 82.5 mm
- Height of housing B: 38 mm
- Length of housing: 94 mm
- Tightening torque: 2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- Size: 10
- Bracket design: Transverse bow
- suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 110 mm
- Mounting dimensions Height: 65 mm
- Hole spacing Length A2: 110 mm
- Seal: NBR
- Width Socket C1: 89 mm
- Height Socket B1: 7 mm
- Packaging type
Piece
- Type
HDC 32B ABU
- Product type
Enclosure extension
- Series
RockStar® HDC 32B
- Manufacturer part #
1217800000
- Features
+ transverse brace on the bottom part
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
276 g
- Content
1 pc(s)
- Width
97 mm
- Height
38 mm
- Length
139.4 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201661 Weidmüller HDC 32B ABU 1217800000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 201661 Weidmüller HDC 32B ABU 1217800000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, Size: 10, protection class IP65, extension casing, cross brace on the bottom part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
