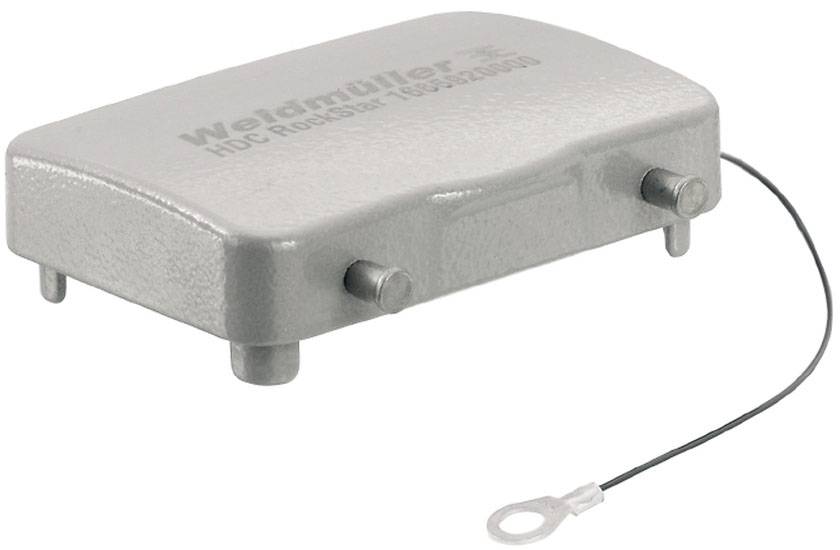

A grey electrical plug adapter by Weidmüller with two connections and an attached earthing cable.

Image similar

A grey electrical plug adapter by Weidmüller with two connections and an attached earthing cable.

Image similar

Product type

Cover

Case material

Aluminium, die cast

Type

HDC 32B DODQ 4BO

Manufacturer part #

1165790000

Features

+ transverse brace on the bottom part

for enclosure bottom parts

powder-painted

Weidmüller

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

EMC housing: No
Design: Standard
Size: 10
Bracket design: Transverse bracket
suitable for ModulPlug®: Yes
Width Housing C: 82.5 mm
Height Housing B: 17 mm
Length Housing: 94 mm
Tightening torque: 2 Nm
Material Locking element: Stainless steel, stainless steel

Type: HDC 32B DODQ 4BO

Product type: Cover

Manufacturer part #: 1165790000

Features: + transverse brace on the bottom part
for enclosure bottom parts
powder-painted

Type: Cover for housing lower parts

Case material: Aluminium, die cast

Factory colour: Grey

Weight: 117 g

Content: 1 pc(s)

Width: 98.3 mm

Height: 17 mm

Length: 94 mm

: IP65

Max. temperature: +125 °C

Min. temperature: -40 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2242020 Weidmüller HDC 32B DODQ 4BO 1165790000 Cover 1 pc(s)
