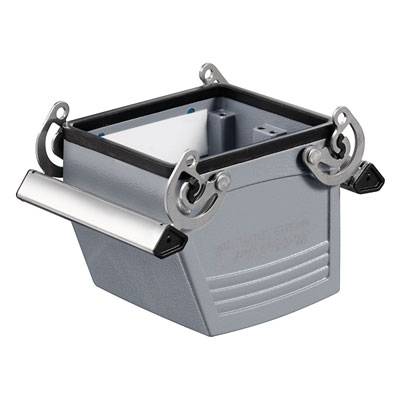

Weidmüller HDC 32B KBU 1PG36G 1902750000 Connector enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Thread size
PG36
Case material
Aluminium, die cast
Type
HDC 32B KBU 1PG36G
Series
RockStar® HDC 32B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC32B KBU 1 PG 36 G
Technical specifications
- Wide housing C: 82.5 mm
- Height Housing B: 83 mm
- Length Housing: 94 mm
- Tightening torque: 2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: Standard
- size: 10
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size of cable inputs: PG 36
- Top/bottom part/cover: Lower part
- of seal: NBR
- Type
HDC 32B KBU 1PG36G
- Product type
Connector enclosure
- Series
RockStar® HDC 32B
- Manufacturer part #
1902750000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
PG36
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
472 g
- Content
1 pc(s)
- Width
97 mm
- Height
83 mm
- Length
139.4 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204683 Weidmüller HDC 32B KBU 1PG36G 1902750000 Connector enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204683 Weidmüller HDC 32B KBU 1PG36G 1902750000 Connector enclosure 1 pc(s)
Description
Connector housing. HDC-casing, Size: 10, protection class IP65, clutch housing, cross brace on the bottom part, Standard, large cable inputs: PG 36. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
