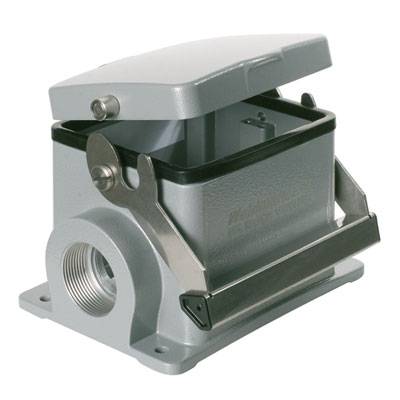

Weidmüller HDC 32B SDLU 1M32G 1902650000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 32B SDLU 1M32G
Series
RockStar® HDC 32B
Datasheet (PDF)
Highlights & Details
Connector housing
- SDLU HDC32B 1 M 32 G
Technical specifications
- Wide housing C: 82.5 mm
- Height Housing B: 96 mm
- Length Housing: 94 mm
- Tightening torque: 2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 1
- Design: Standard
- size: 10
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size of cable inputs: M 32
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 112 mm
- Mounting dimensions Height: 67 mm
- Hole spacing Length A2: 112 mm
- Seal: NBR
- Width Socket C1: 92.5 mm
- Height Socket B1: 5 mm
- Type
HDC 32B SDLU 1M32G
- Product type
Socket enclosure
- Series
RockStar® HDC 32B
- Manufacturer part #
1902650000
- Features
+ longitudinal brace on the bottom part
Cable input (lateral)
+ lid
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
788 g
- Content
1 pc(s)
- Width
143.1 mm
- Height
96 mm
- Length
126 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
143.1
TRUE
96 mm
126 mm
TRUE
Grey
Single locking lever
1
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204678 Weidmüller HDC 32B SDLU 1M32G 1902650000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204678 Weidmüller HDC 32B SDLU 1M32G 1902650000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, Size: 10, protection class IP 65, socket housing, longitudinal brace on the bottom part, standard, with cover, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
