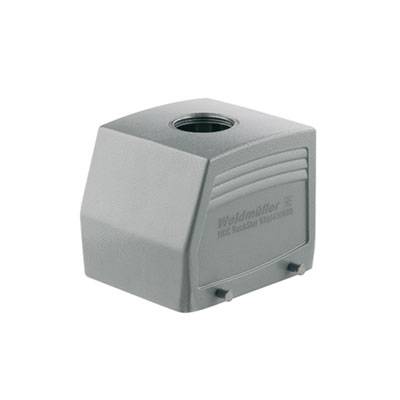

Weidmüller HDC 32B TOBU 1M32G 1788430000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 32B TOBU 1M32G
Series
RockStar® HDC 32B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC32B TOBU 1M 32G
Technical specifications
- Wide housing C: 82.5 mm
- Height Housing B: 79 mm
- Length Housing: 94 mm
- Tightening torque: 2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: Standard
- size: 10
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 32
- Top/bottom part/cover: Top part
- Type
HDC 32B TOBU 1M32G
- Product type
Plug enclosure
- Series
RockStar® HDC 32B
- Manufacturer part #
1788430000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
390 g
- Content
1 pc(s)
- Width
98 mm
- Height
79 mm
- Length
94 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203711 Weidmüller HDC 32B TOBU 1M32G 1788430000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203711 Weidmüller HDC 32B TOBU 1M32G 1788430000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, Size: 10, protection class IP 65, top, plug casing, cross brace on the bottom part, Standard, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
