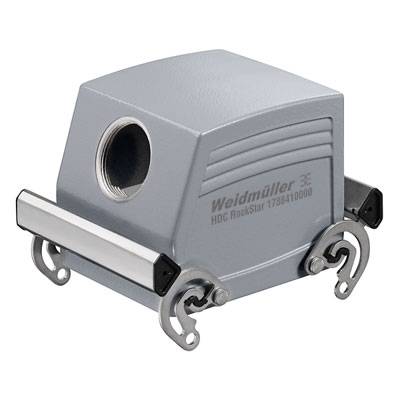

Weidmüller HDC 32B TSBO 1M32G 1788410000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 32B TSBO 1M32G
Series
RockStar® HDC 32B
Datasheet (PDF)
Highlights & Details
Connector housing
- TSBO HDC32B 1 M 32 G
Technical specifications
- Wide housing C: 82.5 mm
- Height Housing B: 79 mm
- Length Housing: 94 mm
- Tightening torque: 2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 10
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 32
- Top/bottom part/cover: Top part
- Type
HDC 32B TSBO 1M32G
- Product type
Plug enclosure
- Series
RockStar® HDC 32B
- Manufacturer part #
1788410000
- Features
+ transverse brace on the top part
Cable input (lateral)
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
477 g
- Content
1 pc(s)
- Width
97 mm
- Height
79 mm
- Length
139.4 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
