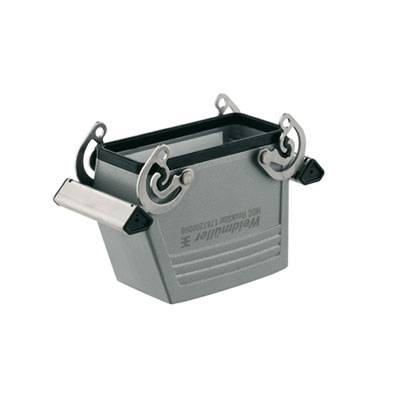

Weidmüller HDC 40D KBU 1PG29G 1967670000 Connector enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Thread size
PG29
Case material
Aluminium, die cast
Type
HDC 40D KBU 1PG29G
Series
RockStar® HDC 40D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC40D KBU 1 PG 29 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 78.6 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: High
- Size: 6
- Bracket design: Transverse bow
- suitable for ModulPlug®: Yes
- Size Cable inputs: PG 29
- Top/bottom part/cover: Lower part
- of seal: NBR
- Type
HDC 40D KBU 1PG29G
- Product type
Connector enclosure
- Series
RockStar® HDC 40D
- Manufacturer part #
1967670000
- Features
+ transverse brace on the bottom part
high type
Cable input (straight)
+ thread
- Thread size
PG29
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
332 g
- Content
1 pc(s)
- Width
55 mm
- Height
79 mm
- Length
136.2 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256188 Weidmüller HDC 40D KBU 1PG29G 1967670000 Connector enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 256188 Weidmüller HDC 40D KBU 1PG29G 1967670000 Connector enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 6, protection class IP65, clutch housing, cross brace on the bottom part, high, large cable inputs: PG 29. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
