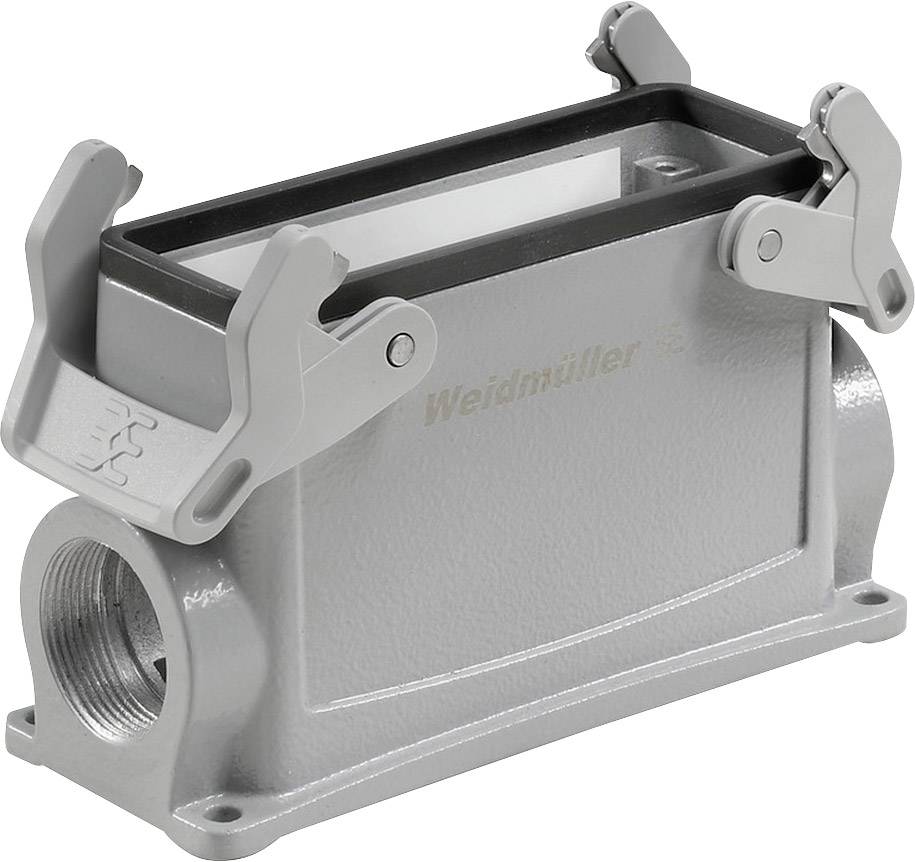

Weidmüller HDC 40D SBU 1M32G N 2561030000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG21
Case material
Aluminium, die cast
Type
HDC 40D SBU 1M32G N
Manufacturer part #
2561030000
Highlights & Details
Our service for you
Technical specifications
- EMC housing: No
- Number of cable input top: 0
- Number of cable input side: 1
- Size: 6
- Bracket design: Transverse bracket
- Seal: NBR
- suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 105 mm
- Mounting dimensions Height: 45 mm
- Width Housing C: 43 mm
- Width Socket C1: 56.5 mm
- Height Housing B: 84 mm
- Height Socket B1: 5 mm
- hole distance Length A2: 105 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- Material Locking element: Polyamide, stainless steel
- Type
HDC 40D SBU 1M32G N
- Product type
Socket enclosure
- Manufacturer part #
2561030000
- Features
+ transverse brace on the bottom part
high type
+ thread
powder-painted
- Thread size
PG21
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
460 g
- Content
1 pc(s)
- Width
56.5 mm
- Height
84 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
not relevant
