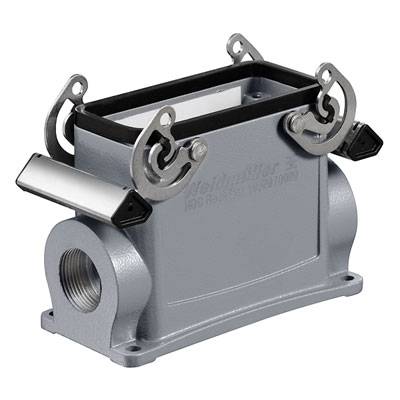

Weidmüller HDC 40D SBU 2M25G 1787120000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 40D SBU 2M25G
Series
RockStar® HDC 40D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC40D SBU 2 M 25 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 84 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 2
- Design type: High
- Size: 6
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size of cable inputs: M 25
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 105 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 105 mm
- Seal: NBR
- Width Socket C1: 56.5 mm
- Height Socket B1: 5 mm
- Type
HDC 40D SBU 2M25G
- Product type
Socket enclosure
- Series
RockStar® HDC 40D
- Manufacturer part #
1787120000
- Features
+ transverse brace on the bottom part
high type
2x cable entry (lateral)
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
459 g
- Content
1 pc(s)
- Width
56.5 mm
- Height
84 mm
- Length
136.2 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
56.5
FALSE
84 mm
Grey
Double locking levers
2
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Socket case
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203601 Weidmüller HDC 40D SBU 2M25G 1787120000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203601 Weidmüller HDC 40D SBU 2M25G 1787120000 Socket enclosure 1 pc(s)
