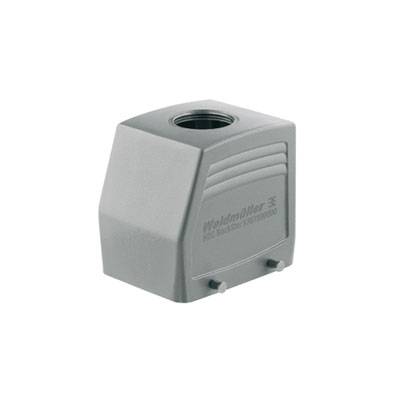

Weidmüller HDC 40D TOBU 2M25 1208380000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 40D TOBU 2M25
Series
RockStar® HDC 40D
Highlights & Details
Connector housing
- HDC40D TOBU 2 M 25
Technical specifications
- Type
HDC 40D TOBU 2M25
- Product type
Plug enclosure
- Series
RockStar® HDC 40D
- Manufacturer part #
1208380000
- Features
+ transverse brace on the top part
2x cable entry (straight)
high type
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
283 g
- Content
1 pc(s)
- Width
59 mm
- Height
76 mm
- Length
93.3 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 201614 Weidmüller HDC 40D TOBU 2M25 1208380000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 6, protection class IP 65, top, plug casing, cross brace on the bottom part, high, large cable inputs: M25.
