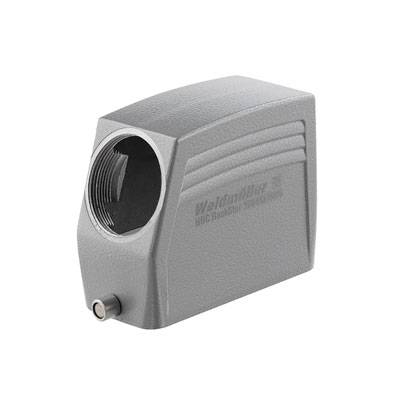

Weidmüller HDC 40D TSLU 1M25G 1787050000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC 40D TSLU 1M25G
Series
RockStar® HDC 40D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC40D TSLU 1M 25G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 76 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 1
- Design: High
- Size: 6
- Bracket: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 25
- Top/bottom part/cover: Top part
- Type
HDC 40D TSLU 1M25G
- Product type
Plug enclosure
- Series
RockStar® HDC 40D
- Manufacturer part #
1787050000
- Features
+ longitudinal brace on the bottom part
Cable input (lateral)
high type
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
275 g
- Content
1 pc(s)
- Width
45.5 mm
- Height
76 mm
- Length
108.8 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203596 Weidmüller HDC 40D TSLU 1M25G 1787050000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203596 Weidmüller HDC 40D TSLU 1M25G 1787050000 Plug enclosure 1 pc(s)
