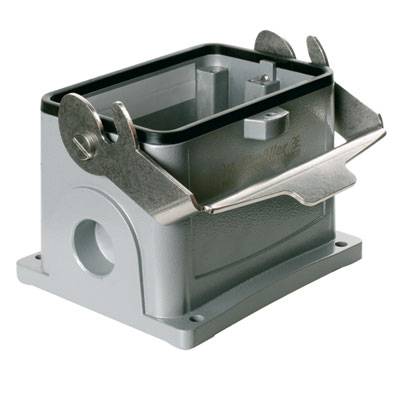

Weidmüller HDC 48B SLU 2M32G 1788370000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 48B SLU 2M32G
Series
RockStar® HDC 48B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC 48 B SLU 2M 32G
Technical specifications
- Wide housing C: 90 mm
- Height Housing B: 100 mm
- Length Housing: 132 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input top: 0
- Number of cable input side: 2
- Design type: Standard
- size: 12
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size Cable inputs: M 32
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 111 mm
- Mounting dimensions Height: 106 mm
- Hole spacing Length A2: 111 mm
- Seal: NBR
- Width Socket C1: 120 mm
- Height Socket B1: 10 mm
- Type
HDC 48B SLU 2M32G
- Product type
Socket enclosure
- Series
RockStar® HDC 48B
- Manufacturer part #
1788370000
- Features
+ longitudinal brace on the bottom part
2x cable entry (lateral)
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
1307 g
- Content
1 pc(s)
- Width
151.2 mm
- Height
100 mm
- Length
143 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203706 Weidmüller HDC 48B SLU 2M32G 1788370000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203706 Weidmüller HDC 48B SLU 2M32G 1788370000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-housing, Size: 12, protection class IP 65, socket housing, longitudinal brace on the bottom part, Standard, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
