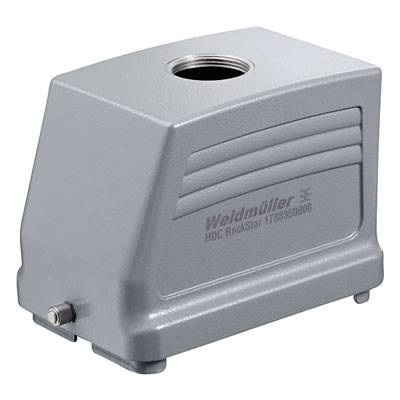

Weidmüller HDC 48B TOLU 1PG29G 1650980000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
PG29
Case material
Aluminium, die cast
Type
HDC 48B TOLU 1PG29G
Series
RockStar® HDC 48B
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC 48 B Ulu Ko * 1 PG 29 G
Technical specifications
- Wide housing C: 90 mm
- Height Housing B: 94 mm
- Length Housing: 132 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: Standard
- size: 12
- Bracket design: Longitudinal bracket
- suitable for ModulPlug®: Yes
- Size Cable inputs: PG 29
- Upper part/cover: Upper part
- Type
HDC 48B TOLU 1PG29G
- Product type
Plug enclosure
- Series
RockStar® HDC 48B
- Manufacturer part #
1650980000
- Features
+ longitudinal brace on the bottom part
Cable input (straight)
+ thread
- Thread size
PG29
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
724 g
- Content
1 pc(s)
- Width
90 mm
- Height
94 mm
- Length
151 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
90
FALSE
94 mm
151 mm
Grey
Single locking lever
0
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Plug case
IP65
Aluminium
Above
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202841 Weidmüller HDC 48B TOLU 1PG29G 1650980000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202841 Weidmüller HDC 48B TOLU 1PG29G 1650980000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-housing, Size: 12, protection class IP 65, top, connector housing, longitudinal brace on the bottom part, Standard, large cable inputs: PG 29. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
