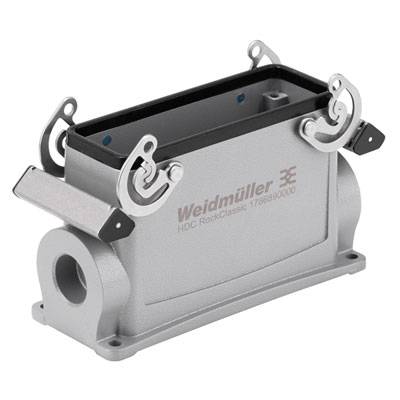

Weidmüller HDC 64D SBU 2PG29G 1661630000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG29
Case material
Aluminium, die cast
Type
HDC 64D SBU 2PG29G
Series
RockStar® HDC 64D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC64D SBU 2PG 29 G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 84 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 2
- Design type: High
- Size: 8
- Bracket design: Cross bracket
- suitable for ModulPlug®: Yes
- Size Cable inputs: PG 29
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 132 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 132 mm
- Seal: NBR
- Width Socket C1: 57.5 mm
- Height Socket B1: 5 mm
- Type
HDC 64D SBU 2PG29G
- Product type
Socket enclosure
- Series
RockStar® HDC 64D
- Manufacturer part #
1661630000
- Features
+ transverse brace on the bottom part
high type
2x cable entry (lateral)
+ thread
- Thread size
PG29
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
482 g
- Content
1 pc(s)
- Width
57.5 mm
- Height
84 mm
- Length
163 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202973 Weidmüller HDC 64D SBU 2PG29G 1661630000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 202973 Weidmüller HDC 64D SBU 2PG29G 1661630000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, socket housing, cross brace on the bottom part, high, large cable inputs: PG 29. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
This text is machine translated.
This text is machine translated.
