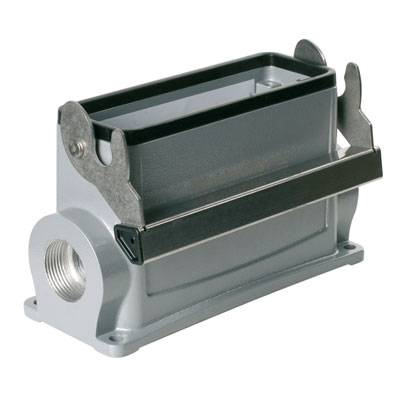

Weidmüller HDC 64D SLU 1M32G 1904490000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 64D SLU 1M32G
Series
RockStar® HDC 64D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC64D SLU 1M 32G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 84 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design: High
- Size: 8
- Bracket design: Suitable for
- ModulPlug®: Yes
- Size of cable inputs: M 32
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 132 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 132 mm
- Seal: NBR
- Width Socket C1: 57.5 mm
- Height Socket B1: 5 mm
- Type
HDC 64D SLU 1M32G
- Product type
Socket enclosure
- Series
RockStar® HDC 64D
- Manufacturer part #
1904490000
- Features
+ longitudinal brace on the bottom part
high type
Cable input (lateral)
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
530 g
- Content
1 pc(s)
- Width
76.8 mm
- Height
84 mm
- Length
144 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 253216 Weidmüller HDC 64D SLU 1M32G 1904490000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 253216 Weidmüller HDC 64D SLU 1M32G 1904490000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, socket housing, longitudinal brace on the bottom part, high, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
