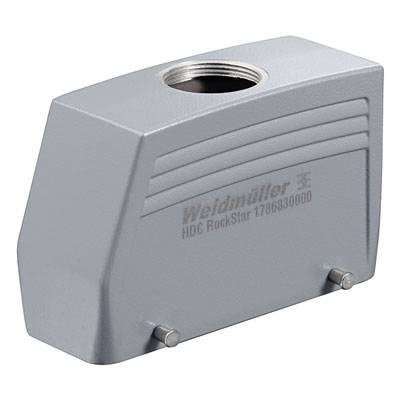

Weidmüller HDC 64D TOBU 1M32G 1786830000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 64D TOBU 1M32G
Series
RockStar® HDC 64D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC64D TOBU 1M 32G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 76 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 1
- Number of cable input side: 0
- Design type: High
- Size: 8
- Bracket design: Cross bracket
- suitable for ModulPlug®: Yes
- Size Cable inputs: M 32
- Top/bottom part/cover: Top part
- Type
HDC 64D TOBU 1M32G
- Product type
Plug enclosure
- Series
RockStar® HDC 64D
- Manufacturer part #
1786830000
- Features
+ transverse brace on the bottom part
Cable input (straight)
high type
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
328 g
- Content
1 pc(s)
- Width
59 mm
- Height
76 mm
- Length
120 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
59
TRUE
76 mm
Grey
Double locking levers
0
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Plug case
IP65
Aluminium
Above
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203576 Weidmüller HDC 64D TOBU 1M32G 1786830000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203576 Weidmüller HDC 64D TOBU 1M32G 1786830000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, top, plug casing, cross brace on the bottom part, high, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
