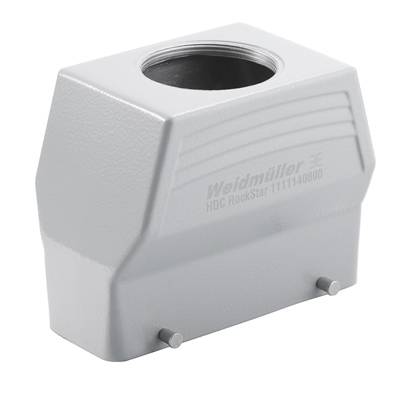

Weidmüller HDC 64D TOBU 1M50G 1111140000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M50
Case material
Aluminium, die cast
Type
HDC 64D TOBU 1M50G
Series
RockStar® HDC 64D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC64D TOBU 1M 50G
Technical specifications
- Width of housing C: 43 mm
- Height of housing B: 76 mm
- Length of housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC housing: No
- Surface: Powder coating
- Number of cable input above: 1
- Number of cable input side: 0
- Design: High
- Size: 8
- suitable for ModulPlug®: Yes
- Size of cable inputs: M 50
- Upper part/cover: Upper part
- Hole distance Length A2: 0 mm
- Type
HDC 64D TOBU 1M50G
- Product type
Plug enclosure
- Series
RockStar® HDC 64D
- Manufacturer part #
1111140000
- Features
+ transverse brace on the bottom part
Cable input (straight)
+ thread
- Thread size
M50
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
408 g
- Content
1 pc(s)
- Width
65.5 mm
- Height
94 mm
- Length
120 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200571 Weidmüller HDC 64D TOBU 1M50G 1111140000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200571 Weidmüller HDC 64D TOBU 1M50G 1111140000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 65, top, plug casing, cross brace on the bottom part, Standard, large cable inputs: M50. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
