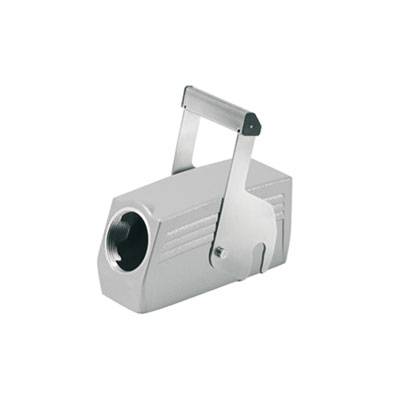

Weidmüller HDC 64D TSZO 1M40G 1904690000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M40
Case material
Aluminium, die cast
Type
HDC 64D TSZO 1M40G
Series
RockStar® HDC 64D
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC64D TSZO 1M 40G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 76 mm
- Length Housing: 120 mm
- Tightening torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design: High
- Size: 8
- Bracket design: Central bracket
- suitable for ModulPlug®: Yes
- Size Cable inputs: M 40
- Upper part/cover: Upper part
- Type
HDC 64D TSZO 1M40G
- Product type
Plug enclosure
- Series
RockStar® HDC 64D
- Manufacturer part #
1904690000
- Features
+ centre brace on the top part
Cable input (lateral)
high type
+ thread
- Thread size
M40
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
409 g
- Content
1 pc(s)
- Width
149 mm
- Height
76 mm
- Length
120 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 253242 Weidmüller HDC 64D TSZO 1M40G 1904690000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 253242 Weidmüller HDC 64D TSZO 1M40G 1904690000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP65, side cable entry, plug casing, center brace on the top part, high, large cable inputs: M40. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
