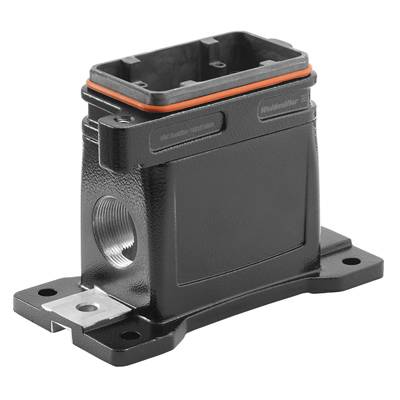

Weidmüller HDC IP68 06B SS 2M25 1081240000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC IP68 06B SS 2M25
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 06 B SS2 M25
Technical specifications
- Length of housing: 156 mm
- EMC Housing: Yes
- Surface: Powder coating
- Number of cable input top: 0
- Number of cable input side: 2
- Type: Standard
- Size: 3
- Clip design: Screw cap
- suitable for ModulPlug®: Yes
- Size of cable inputs: M 25
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 127 mm
- Mounting dimensions Height: 60 mm
- Hole distance Length A2: 127 mm
- Seal: Silicone rubber
- Type
HDC IP68 06B SS 2M25
- Product type
Socket enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1081240000
- Features
2x cable entry (lateral)
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
866 g
- Content
1 pc(s)
- Width
80 mm
- Height
100.5 mm
- Length
156 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199527 Weidmüller HDC IP68 06B SS 2M25 1081240000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 199527 Weidmüller HDC IP68 06B SS 2M25 1081240000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 3, protection class IP 68, socket housing, screw cap, Standard, large cable inputs: M25. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
