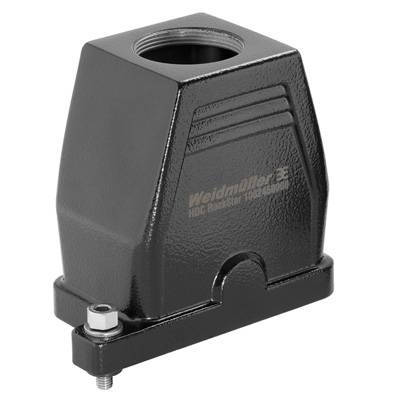

Weidmüller HDC IP68 06B TOS 1M25 1082430000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M25
Case material
Aluminium, die cast
Type
HDC IP68 06B TOS 1M25
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 06 B TOS 1 M 25
Technical specifications
- Length of housing: 132 mm
- Tightening torque: 6.5 Nm
- EMC Housing: Yes
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input top: 1
- Number of cable input side: 0
- Design: Standard
- Size: 3
- Type of bracket: Screw cap
- suitable for ModulPlug®: Yes
- Size of cable inputs: M 25
- Upper part/Lower part/Cover: Upper part
- Type
HDC IP68 06B TOS 1M25
- Product type
Plug enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1082430000
- Features
Cable input (straight)
+ thread
- Thread size
M25
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
449 g
- Content
1 pc(s)
- Width
58 mm
- Height
100.5 mm
- Length
132 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199684 Weidmüller HDC IP68 06B TOS 1M25 1082430000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 199684 Weidmüller HDC IP68 06B TOS 1M25 1082430000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-housing, size: 3, protection class IP68, connector housing, screw cap, Standard, large cable inputs: M25. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
