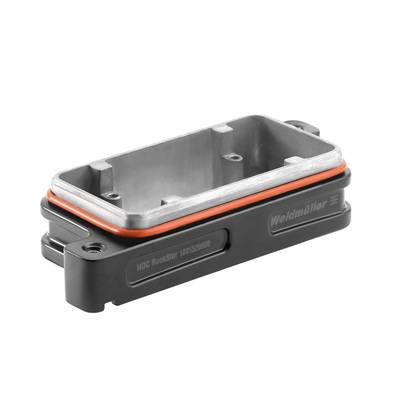

Weidmüller HDC IP68 10B AS 1081520000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC IP68 10B AS
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 10B AS
Technical specifications
- Length of housing: 144 mm
- EMC Housing: Yes
- Surface: Powder coating
- Design: Standard
- Size: 4
- Clip design: Screw cap
- suitable for ModulPlug®: Yes
- Top/bottom part/cover: Base
- Mounting dimensions Width: 83 mm
- Mounting dimensions Height: 32 mm
- Hole spacing Length A2: 83 mm
- Seal: Silicone rubber
- Packaging type
Piece
- Type
HDC IP68 10B AS
- Product type
Enclosure extension
- Series
RockStar® HDC IP68
- Manufacturer part #
1081520000
- Features
+ screw lock
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
170 g
- Content
1 pc(s)
- Width
58 mm
- Height
29.5 mm
- Length
144 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199650 Weidmüller HDC IP68 10B AS 1081520000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 199650 Weidmüller HDC IP68 10B AS 1081520000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 4, protection class IP68, connector housing, screw cap, Standard. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
