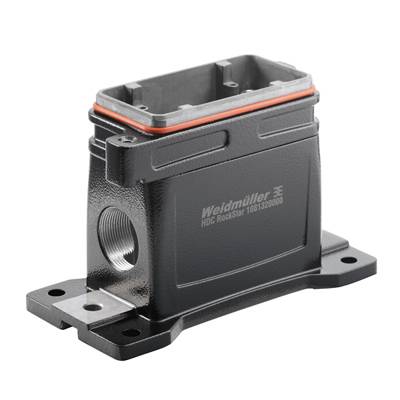

Weidmüller HDC IP68 10B SS 1PG29 1081290000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
PG29
Case material
Aluminium, die cast
Type
HDC IP68 10B SS 1PG29
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 10B SS1 PG29
Technical specifications
- Length of housing: 169 mm
- EMC Housing: Yes
- Surface: Powder coating
- Number of cable input top: 0
- Number of cable input side: 1
- Type: Standard
- Size: 4
- Clip design: Screw cap
- suitable for ModulPlug®: Yes
- Size of cable inputs: PG 29
- Upper part/lower part/cover: Lower part
- Mounting dimensions Width: 140 mm
- Mounting dimensions Height: 60 mm
- Hole distance Length A2: 140 mm
- Seal: Silicone rubber
- Type
HDC IP68 10B SS 1PG29
- Product type
Socket enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1081290000
- Features
Cable input (lateral)
+ thread
- Thread size
PG29
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
903 g
- Content
1 pc(s)
- Width
80 mm
- Height
100.5 mm
- Length
169 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199564 Weidmüller HDC IP68 10B SS 1PG29 1081290000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 199564 Weidmüller HDC IP68 10B SS 1PG29 1081290000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 4, protection class IP 68, socket housing, screw cap, Standard, large cable inputs: PG 29. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
