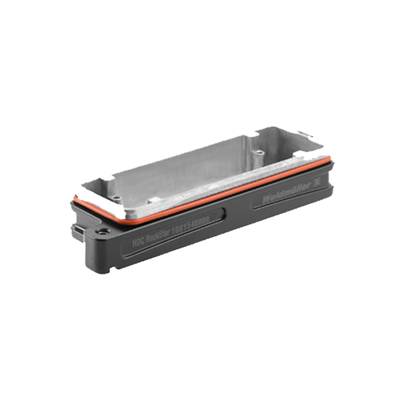

Weidmüller HDC IP68 24B AS 1081540000 Enclosure extension 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
HDC IP68 24B AS
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 24B AS
Technical specifications
- Housing B height 29.5 mm
- Length of housing 191 mm
- EMC housing: Yes
- Surface: Powder coating
- Design: Standard
- Size: 8
- Clamp design: Screw cap
- Suitable for ModulPlug®: Yes
- Upper part/lower part/cover: Lower part
- Mounting dimensions width 130 mm
- Mounting dimensions height 32 mm
- Hole distance length A2 130 mm
- Seal: Silicone rubber
- Packaging type
Piece
- Type
HDC IP68 24B AS
- Product type
Enclosure extension
- Series
RockStar® HDC IP68
- Manufacturer part #
1081540000
- Features
+ screw lock
- Case material
Aluminium, die cast
- Factory colour
Black
- Total no. of pins
24
- Weight
196.845 g
- Content
1 pc(s)
- Number of pins
24
- Width
58 mm
- Height
29.5 mm
- Length
191 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
58
TRUE
29.5 mm
Black
Screw
FALSE
TRUE
Aluminium
Powder coating
-50-125 °C
Other
TRUE
Housing extension
IP68
Aluminium
Other
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199657 Weidmüller HDC IP68 24B AS 1081540000 Enclosure extension 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 199657 Weidmüller HDC IP68 24B AS 1081540000 Enclosure extension 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 8, protection class IP68, connector housing, screw cap, Standard. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
