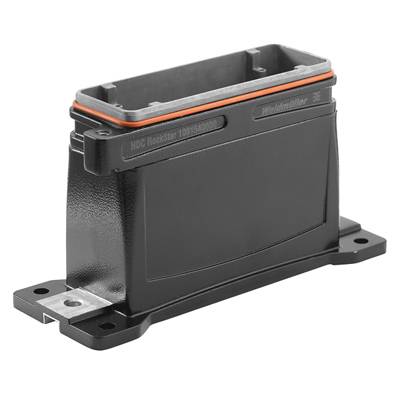

Weidmüller HDC IP68 24B SS 2M40 1081420000 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M40
Case material
Aluminium, die cast
Type
HDC IP68 24B SS 2M40
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 24B SS2 M40
Technical specifications
- Height of housing B: 111.5 mm
- Length of housing: 216 mm
- EMC Housing: Yes
- Surface: Powder coating
- Number of cable input top: 0
- Number of cable input side: 2
- Type of construction: Standard
- size: 8
- Type of bracket: Screw cap
- suitable for ModulPlug®: Yes
- Size of cable inputs: M 40
- Upper part/cover: Lower part
- Mounting dimensions width: 187 mm
- Mounting dimensions Height: 60 mm
- Hole spacing Length A2: 187 mm
- Seal: Silicone rubber
- Type
HDC IP68 24B SS 2M40
- Product type
Socket enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1081420000
- Features
2x cable entry (lateral)
+ thread
- Thread size
M40
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
1160 g
- Content
1 pc(s)
- Width
80 mm
- Height
111.5 mm
- Length
216 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199618 Weidmüller HDC IP68 24B SS 2M40 1081420000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 199618 Weidmüller HDC IP68 24B SS 2M40 1081420000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP 68, socket housing, screw cap, Standard, large cable inputs: M40. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
