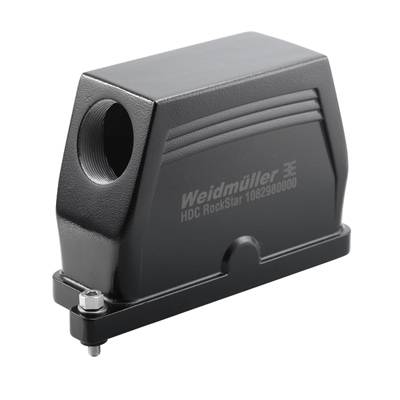

Weidmüller HDC IP68 24B TSS 1PG36 1083010000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
PG36
Case material
Aluminium, die cast
Type
HDC IP68 24B TSS 1PG36
Series
RockStar® HDC IP68
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 24B TSS 1 PG 36
Technical specifications
- Height of housing B: 110.5 mm
- Length of housing: 191 mm
- Tightening torque: 6.5 Nm
- EMC Housing: Yes
- Surface: Powder coating
- Material Locking element: Stainless steel, stainless
- steel Number of cable input above: 0
- Number of cable input side: 1
- Design type: Standard
- size: 8
- Bracket design: Screw cap
- suitable for ModulPlug®: Yes
- Size of cable inputs
- : PG 36 Upper part/cover: Upper part
- Type
HDC IP68 24B TSS 1PG36
- Product type
Plug enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1083010000
- Features
Cable input (lateral)
+ thread
- Thread size
PG36
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
647 g
- Content
1 pc(s)
- Width
58 mm
- Height
110.5 mm
- Length
191 mm
IP68
IP69K
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199767 Weidmüller HDC IP68 24B TSS 1PG36 1083010000 Plug enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 199767 Weidmüller HDC IP68 24B TSS 1PG36 1083010000 Plug enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 8, protection class IP68, connector housing, screw cap, Standard, large cable inputs: PG 36. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
