Buy Weidmüller HTF 63 9013400000 Crimper F plugs/sockets 0.5 up to 2.5 mm²

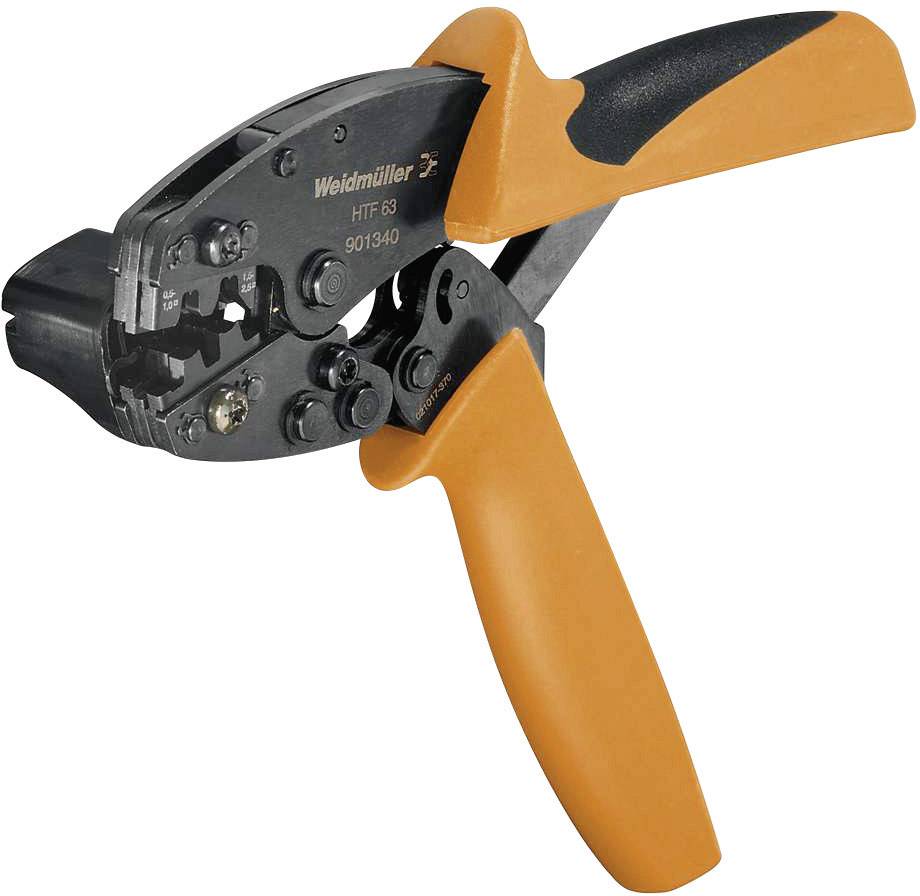

An orange crimping pliers with black handles on a white background, used for connecting cables to connectors.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Crimp type/profile: B-Crimp
connector width 6.3 mm

Product type: Crimper

Manufacturer part #: 9013400000

Range of uses: F plugs/sockets

Crimp area: 0.5 up to 2.5 mm²

Crimp area AWG: 14 up to 21 awg

Crimp area (min.): 0.5 mm²

Crimp area (max.): 2.5 mm²

Crimp area AWG (min.): 21 awg

Crimp area AWG (max.): 14 awg

Length: 200 mm

Width: 200 mm

Height: 284 mm

Weight: 438.2 g

: 200 m

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 259135 Weidmüller HTF 63 9013400000 Crimper F plugs/sockets 0.5 up to 2.5 mm²

User & Safety Instructions

User & Safety Instructions 259135 Weidmüller HTF 63 9013400000 Crimper F plugs/sockets 0.5 up to 2.5 mm²

Description

Crimping tool for contacts. 0.5 mm², 2.5 mm², B-crimp. The standard features of the HTF-crimp tools for RSV system are available for maximum contact security with simple operation: integrated forced lock. Safety release, precise positioning stop. The built-in functions guarantee a standard-compliant crimp geometry by exact positioning and automatic 100% compression. The result: 100% Crimp Result = 100% failure safety.
