Buy Weidmüller HTF DFF 9014140000 Crimper DFF terminals 0.22 up to 2.5 mm²

A yellow and black wire stripping tool is cutting a cable. The tool has ergonomic handles and an adjustable blade.

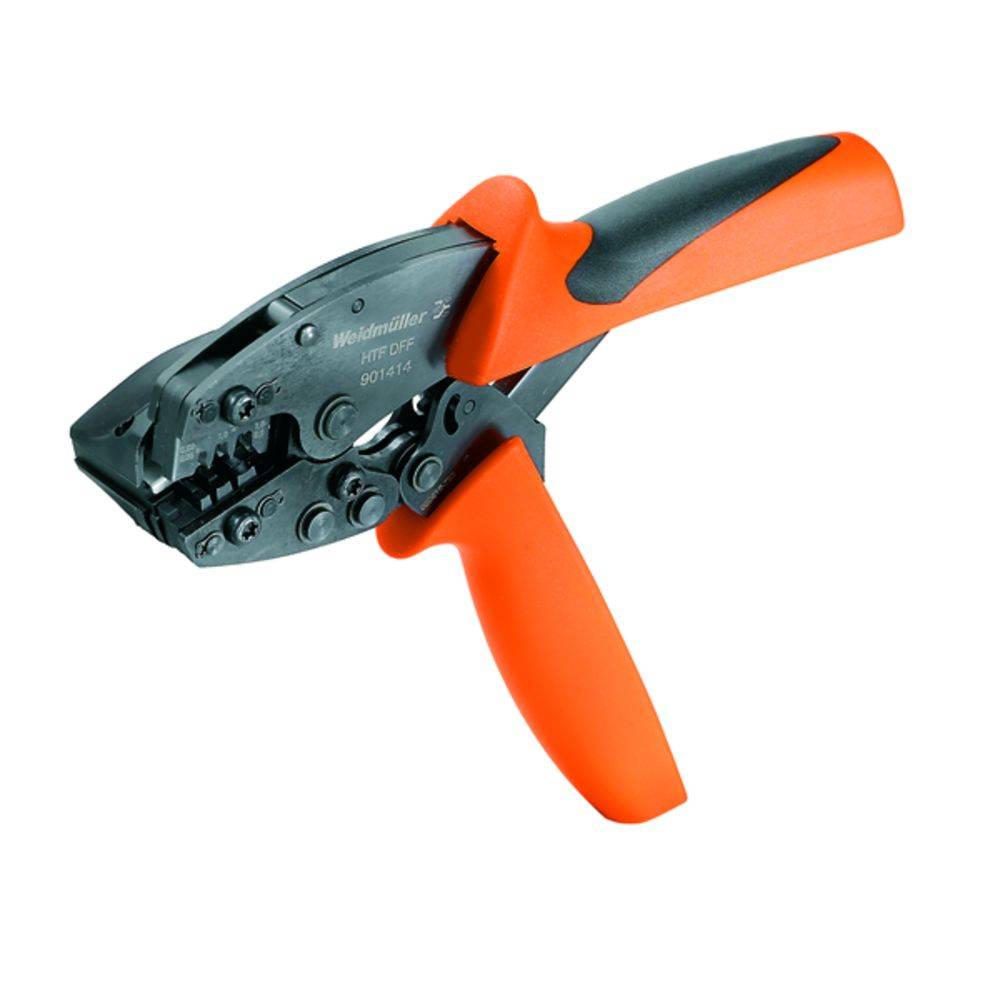

Crimping pliers with an orange and black handle on a white background, used for connecting cables and connectors.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Crimp type/profile: FoderBcrimp

Product type: Crimper

Manufacturer part #: 9014140000

Range of uses: DFF terminals

Crimp area: 0.22 up to 2.5 mm²

Crimp area AWG: 14 up to 24 awg

Crimp area (min.): 0.22 mm²

Crimp area (max.): 2.5 mm²

Crimp area AWG (min.): 24 awg

Crimp area AWG (max.): 14 awg

Length: 205 mm

Width: 205 mm

Height: 283 mm

Weight: 442 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 259150 Weidmüller HTF DFF 9014140000 Crimper DFF terminals 0.22 up to 2.5 mm²

User & Safety Instructions

User & Safety Instructions 259150 Weidmüller HTF DFF 9014140000 Crimper DFF terminals 0.22 up to 2.5 mm²

Description

Crimping tool for contacts. 0.22mm², 2.5 mm², FoderBcrimp. The standard features of the HTF-crimp tools for RSV system are available for maximum contact security with simple operation: integrated forced lock. Safety release, precise positioning stop. The built-in functions guarantee a standard-compliant crimp geometry by exact positioning and automatic 100% compression. The result: 100% Crimp Result = 100% failure safety.
