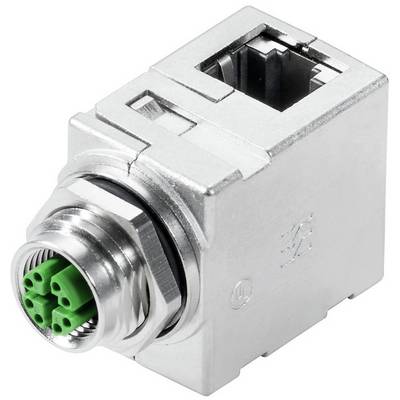

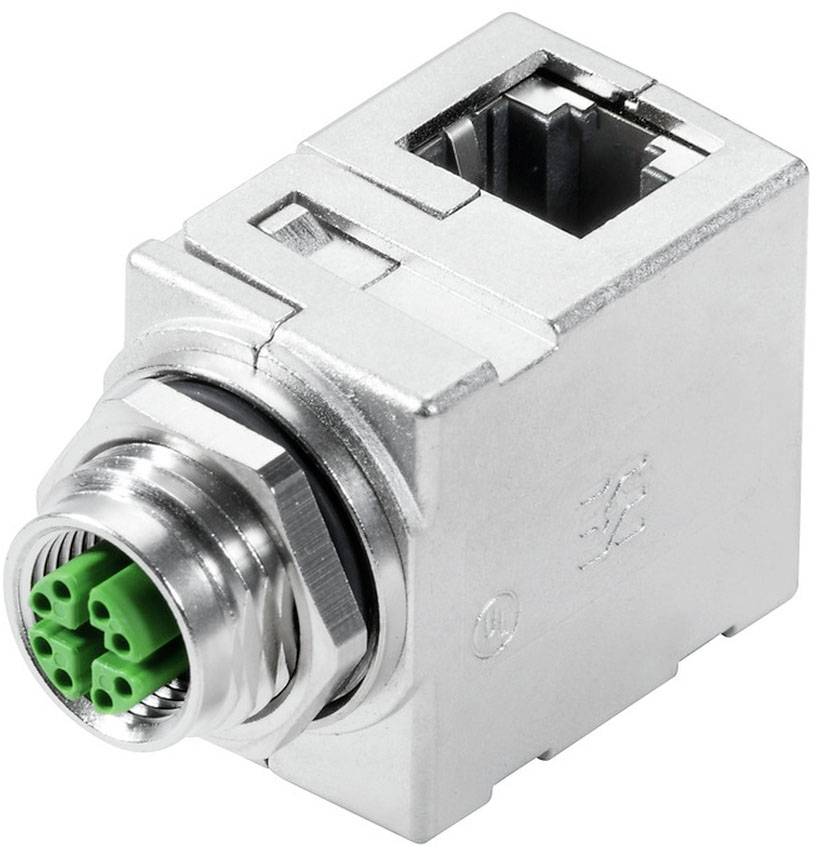

Weidmüller IE-AD-M12XRJ45-90 Weidmüller IE-AD-M12XRJ45-90 N/A 1400610000 Adapter, right angle 10 pc(s) 1400610000 Adapte
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Adapter
Connector type
Adapter, right angle
Specification
CAT 6A
Connector standard
RJ45 Cat6
Technical specifications
- Insulation resistance: 100 MΩ
- Nominal voltage: 60 V
- Shield material: CuSn
- Shielding: 360° Shield contact
- Protection class: IP67
- Plug cycles:> 100 (M12), 750 (RJ45)
- Contact surface: Gold over nickel
- Wall thickness: 0.9 mm - 4 mm
- Current carrying capacity at 50 °C: 0.5 A at 40 °C.
- Packaging type
Piece
- Type
IE-AD-M12XRJ45-90
- Product type
Adapter
- Connector type
Adapter, right angle
CAT 6A
- Connector standard
RJ45 Cat6
- Connection
RJ45
M12 socket
- Type A
RJ45 socket
- Type B
M12 socket
- No. of rows
1
- Weight
6.2 g
- Content
10 pc(s)
- Contact material
CuZn
- Material
Zinc (die-cast)
- Features
L-shaped
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- UKCA
yes
