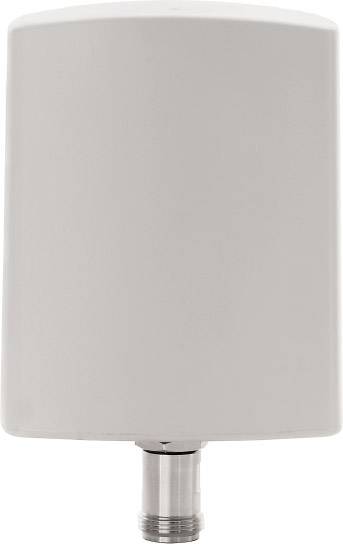

A white cylindrical antenna with a metal connection at the bottom, against a neutral background.

Image similar

A white cylindrical antenna with a metal connection at the bottom, against a neutral background.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Housing base material: PC
radiation: Directional
connection type: 1 x N-type socket, bottom
antenna gain: Band 1: 9 dBi, Band 2: 9 dBi
Frequency range: Band 1: 2400 - 2500 (MHz), Band 2: 5150 - 5875 (MHz)
Impedance: 50 Ω
Max. Load capacity: 10 W
Polarization: Vertical
Application area: Indoors as well as outdoors
Windload: Frontal, lateral, 7 N, at 160 km/h
Color: Gray

Product type: Omnidirectional antenna

Type: IE-ANT-P-ABG-75-9-NF

Dim: (W x H x D) 80 x 101 x 35 mm

Weight: 120 g

Operating temperature: -40 up to +80 °C

Max. operating temperature: +80 °C

Min. operating temperature: -40 °C

Width: 80 mm

Height: 101 mm

Depth: 35 mm

: IP67

Max. temperature: +80 °C

Max. ambient temperature: +80 °C

Min. ambient temperature: -40 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1889349 Weidmüller IE-ANT-P-ABG-75-9-NF Omnidirectional antenna

User & Safety Instructions

User & Safety Instructions 1889349 Weidmüller IE-ANT-P-ABG-75-9-NF Omnidirectional antenna
