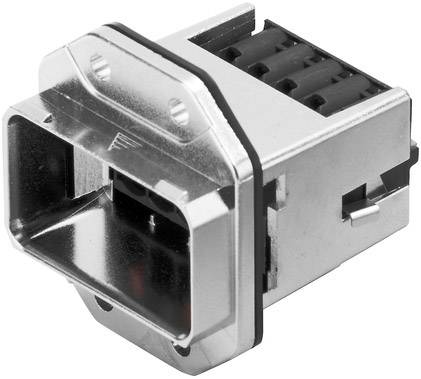

A metallic connector with a rectangular shape and plastic components. Suitable for electronic device connections.

Image similar

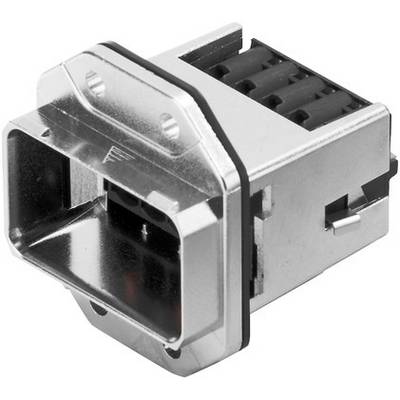

A metallic connector with a rectangular shape and plastic components. Suitable for electronic device connections.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Housing base material: Die-cast zinc, nickel-plated
Mounting type: 4 screws
Length: 66 mm
flammability class according to UL 94: V-2
Color: Silver gray
Connection: Tension spring
Contact material: CU-Leg
Contact surface: Gold over nickel
Wire cross-section, fine wire, max.: 2.5 mm²
Number of pins: 5
Pollution degree: 2

Product type: Sleeve set

Type: IE-BSS-VAPM-24V

Dim: (W x D) 46 mm x 66 mm

Weight: 54 g

Operating voltage: 24 V

Operating temperature: -40 up to +70 °C

Max. operating temperature: +70 °C

Min. operating temperature: -40 °C

Width: 46 mm

Depth: 66 mm

: IP67

Max. temperature: +70 °C

UKCA: yes
